Modular Intelligent Sorting Equipment Of Medium Speed

Home > Products > Intelligent Sorting Robot > Medium Speed Multi-wheel Sorter

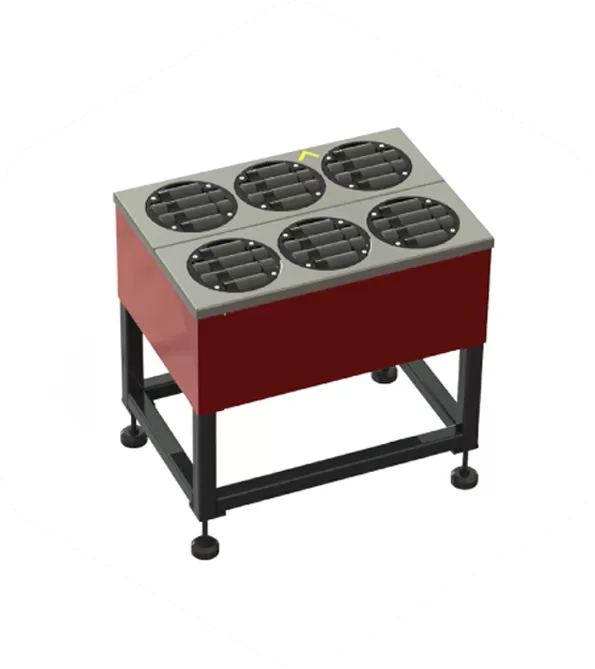

Medium Speed Multi-wheel Sorter

● Sorting capacity: 800-3000 pieces/hour
● Full weight sorting: 0.2-60Kg/㎡;
● Maintenance duration of one module: 10 minutes
● Supports sorting types: cartons, soft bags, woven bags, express bags, pallets, books, parcels, letters, turnover baskets, electronic products, special-shaped parts, etc.
● Project area: China, Japan, United Kingdom, Malaysia, Thailand, Philippines, Vietnam and other countries;
● Application industry: e-commerce industry, logistics industry, storage industry, shoes and clothing industry, cold chain industry, books industry, food industry, electronics industry, home furnishing industry, wine industry,

All categories sorting, effectively solve the sorting problems of soft bags, woven bags/uneven parts.The company has a deep technical background and efficient independent research and development team, 80% have a bachelor's or master's degree. All categories sorting, effectively solve the sorting problems of soft bags, woven bags/uneven parts.The company has a deep technical background and efficient independent research and development team, 80% have a bachelor's or master's degree.

Product Features

1. Complete Machine

Compact structure, light; High efficiency, low noise
2. Core Component

Highly modular, easy to install and maintain
3. Multi-wheel Structure

Arge contact surface, high sorting efficiency, sorting goods
4. Visual Operation

Visual interface, Siemens universal PLC interface
5. Green

Save energy, environmental protection

800-4000

Pieces/Hour Capacity

≤72db

Running Noise

0.15~60KG

Load

Product Technical Parameters

Intelligent sorting robot of medium speed
Capacity	Goods category	Load	operational Speed	operational Noise	Specification(mm)	Line Width(mm)	Cargo size mm	Cargo Interval（mm）
(pieces/hour)		(kg)
800-4000	All categories	0.15-60	0.8m-1.5/s	≤72dB	700x860x700	800	160100-600600	450
					920x1060x700	1000	160100-1000800	450
					1200x1260x700	1200	160100-1200800	450

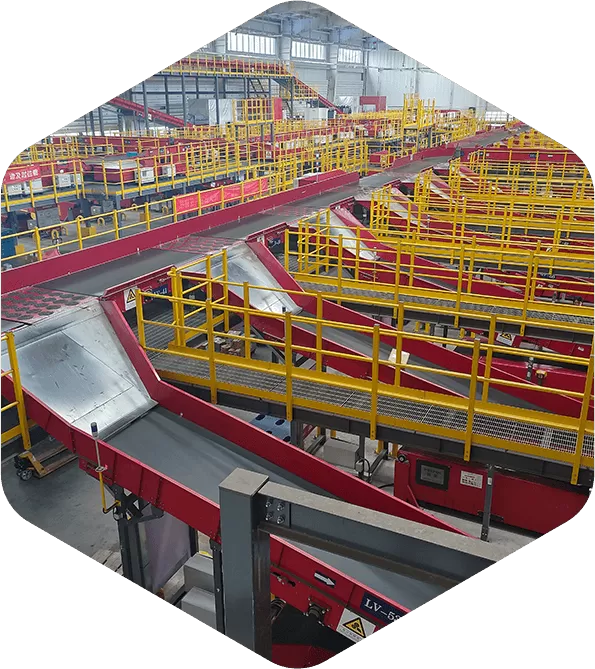

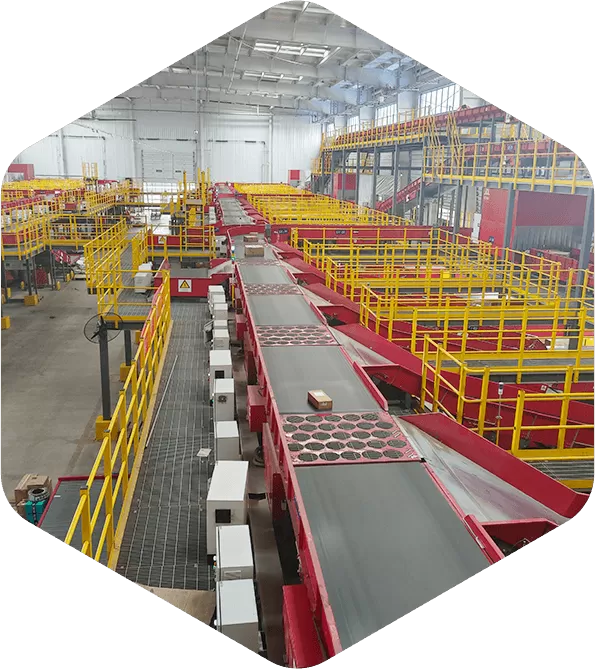

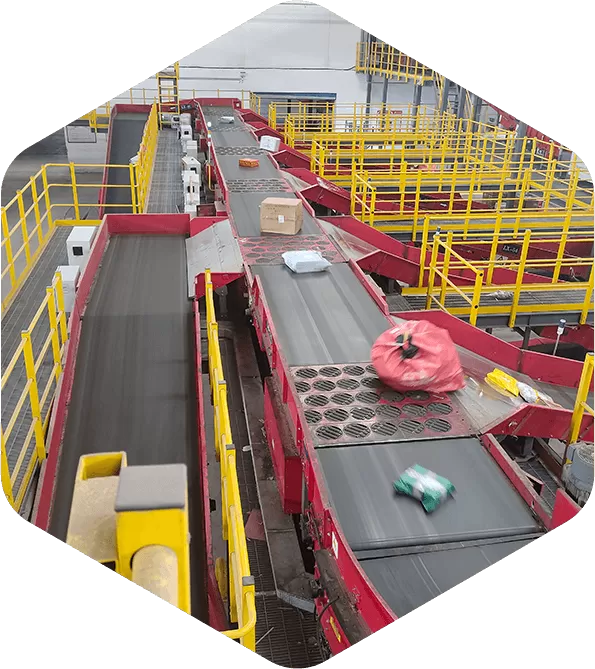

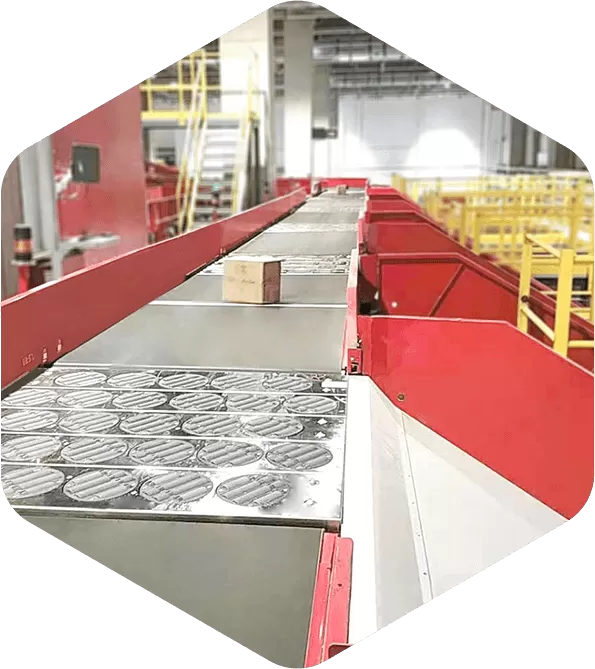

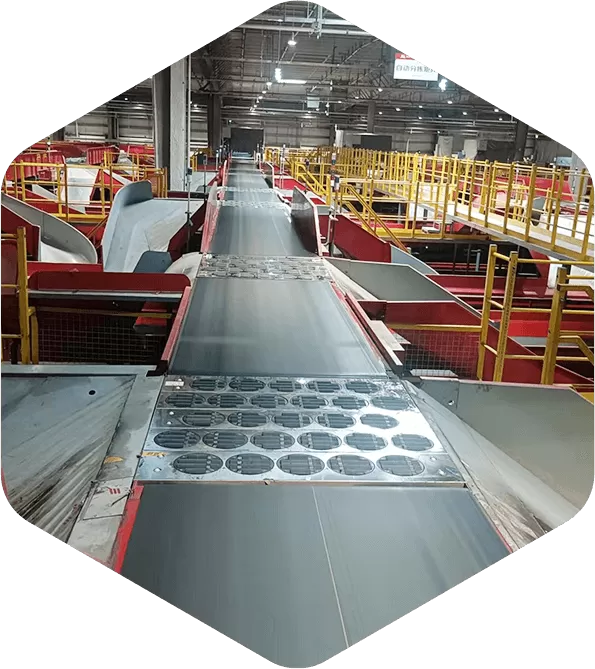

Modular Sorting Robot Applications

E-commerce, logistics, express delivery, medicine, books, tobacco, shoes and clothing, mother and child, fresh cold chain, drinks and beverages and other industries of item sorting.

Daily Chemicals

Technology Company

E-commerce

Shoes and Clothing Industry

Through intelligent robot sorting, the goods of different SKUs are selected and combined into one order for delivery, greatly reducing the personnel...

Self driving chute made of fiberglass material, material characteristics anti-magnetic, anti-static. The self-powered chute made of fiberglass is used to...

In the scenario of cross-floor vertical transportation in the e-commerce industry, the self-powered chute is used to smoothly slide the goods from the...

In the footwear industry, the clothing packaging type is basically packaged through plastic bags or waterproof bags; This kind of packaging is very soft...

Application Scenario Pattern

Intelligent Sorting Robot of Medium Speed

Installation and Maintenance Manual

Installation
- Instruction manual of Intelligent sorting robot
- Instruction manual of Self driving chute
Contact Us >>
Maintenance
- Instruction manual of Intelligent sorting robot
- Instruction manual of Self driving chute
- Maintenance manual of Intelligent sorting robot
- Maintenance manual of Self driving chute
- Intelligent sorting robot servo manual
- Intelligent sorting robot inverter manual
Contact Us >>

Please leave your contact information and we will contact you as soon as possible

Product Usage and Testing

Product Usage Video
Product Test Video
