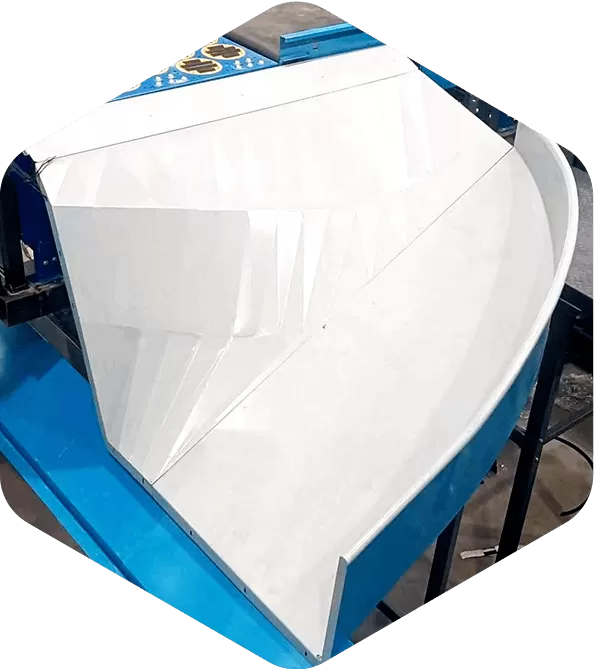

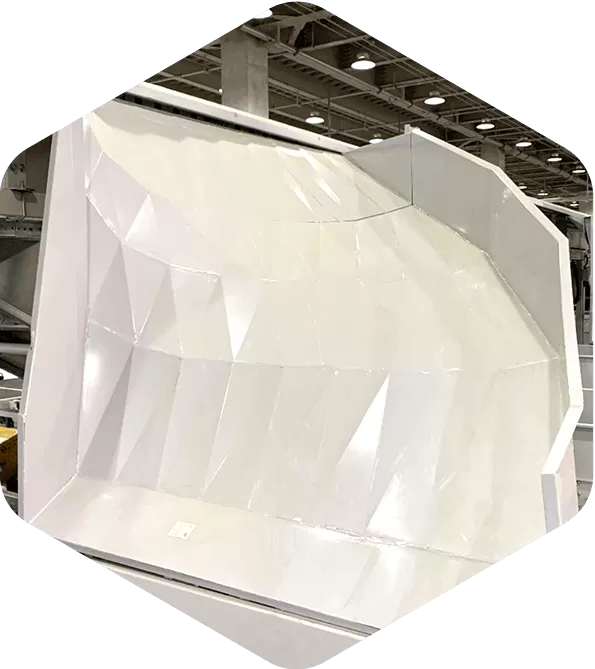

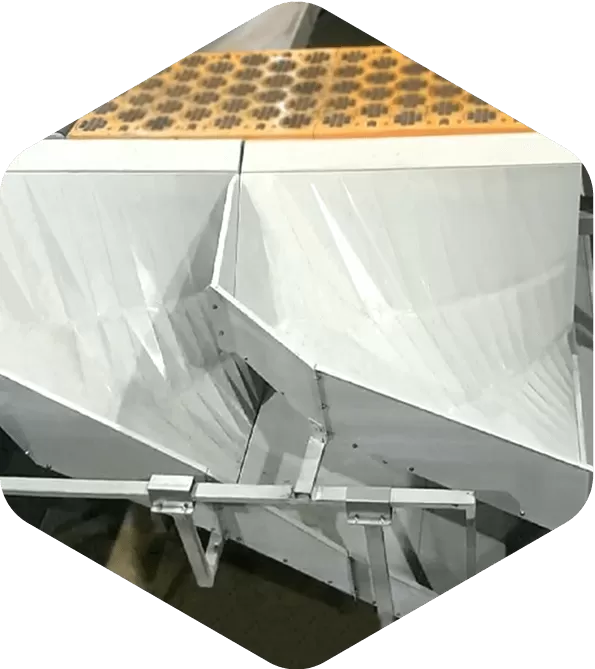

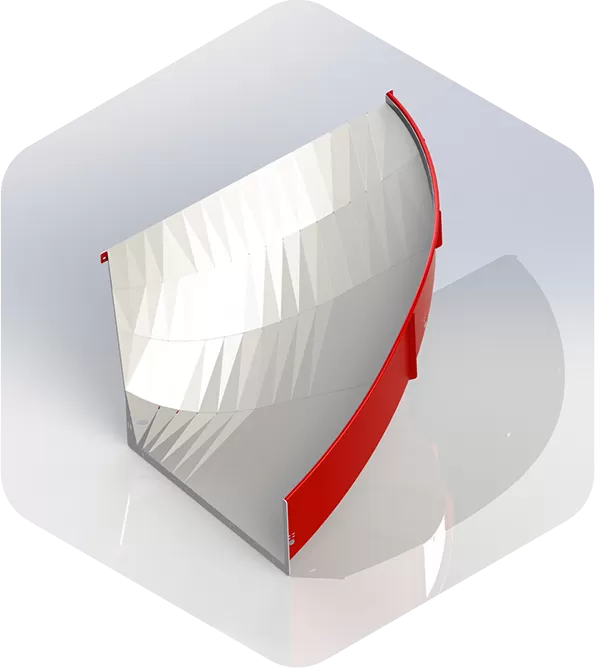

Diamond Conveyor Chute

● Rotation Angle: 90°
● Conveying capacity: 200KG/㎡
● Application scenario: single side automatic upper/lower chute, two in one automatic upper/lower chute
Contact Us >>
Contact Us
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute
Diamond Conveyor Chute

1. Use carbon steel bending process, optional upper chute, lower chute and other categories;

2. Commonly used in automated matrix layout or transmission line body spacing scenes;

3. Combine the goods of different transmission lines into the same grid port of destination for transportation, to realize the conversion and transportation of goods in multiple lines;

Product Features

  • 1. 3D integrated molding process

    Angle deviation < 1°, cargo transport 0 tumbling

  • 2. Anti-magnetic anti-static

    Good electrical insulation performance, friendly to 3C magnetic products

  • 3. Super smooth

    Nano-composite surface, roughness < Ra2.5

  • 4. High space utilization

    Support cargo transportation in complex environments such as small space and multiple entrances

  • 5. Ultra-wear-resistant

    Excellent quality of life ≥10 years

  • 6. High hardness

    New fiberglass matrix, standard bearing capacity 100KG/㎡

  • 7. High weather resistance

    No softening deformation in extreme environment, no flame, no burning

  • 8. Easy installation

    Flange installation mode, greatly reducing maintenance costs
