Manual One Point Two Conveyor Chute

● Rotation Angle: 90°
● Conveying capacity: 20-100kg/m²
● Application scenario: manual one conveyor chute, manual one conveyor chute

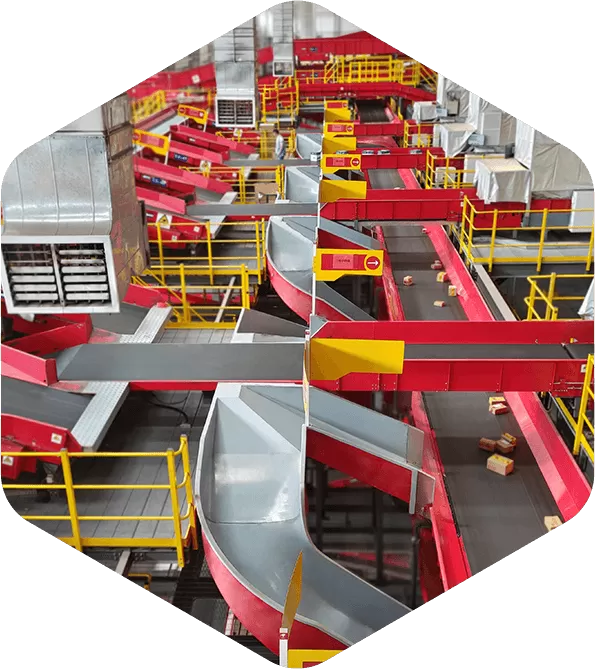

1. It is used in the matrix layout scene of manual sorting operation to connect the main conveying line and branch line with staggered space.

2. The goods are generally sorted to two different exits by manual identification, which can effectively divert the goods to different processing areas.

3. The product has the characteristics of high hardness, super wear resistance, and excellent quality with a service life of more than 10 years;

Manual Sorting Chute Features

1. Matrix

Friendly FRP, corrosion resistant, easy to form
2. Coating

Anti-static, wear-resistant, anti-magnetic, precise, beautiful
3. Design Technology

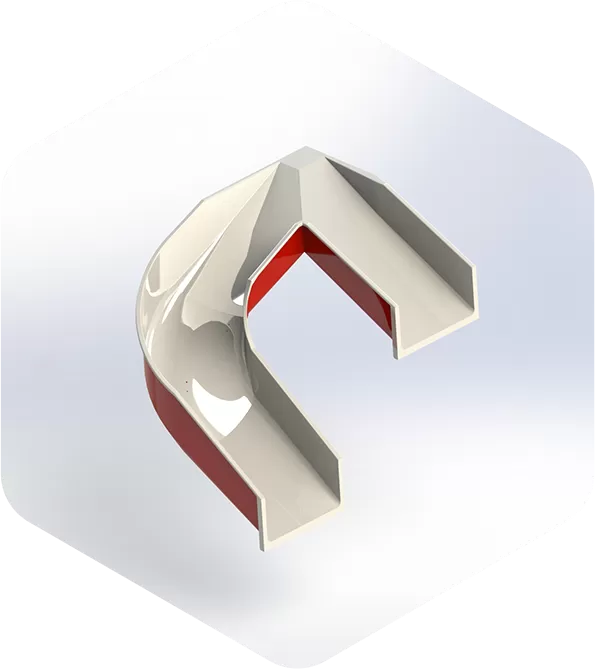

Multiple parabolas, combined path, smooth slide, no tumbling
4. Surface Oriented Design

Nonlinear resistance, cavitation technology, automatic orbit change
5. Cost-Effective

Manual sorting chutes are generally less expensive than automated systems and require minimal setup.
6. Flexibility

Can be easily adjusted or reconfigured to meet changing needs.

Anti-Static

Wear-Resistant

Anti-Magnetic

Product Technical Parameters

Category	Name	Length（mm）	Width（mm）	Height（mm）	Entrance width（mm）	Exit width（mm）	Inner width（mm）
Manual sorting chute	One entrance to one exit	3420	2550	3100-500	1000	1000	1000
	One entrance to two exits	3420	2550	3100-1800/500	1000	1000	1000
	Manual loading chute	3850	1850	3100-900	1000	1000	1000
