Intelligent Sorting Robot
Keefam® Intelligent Sorting Robot
Our product is a multi-axis plane cross sorting robot.
The sorter has a modular design, small size and high efficiency (speed 0-2.2 m/s).
It can realize the mixed sorting of various specifications, especially for PE soft bag, collection bag woven bag and other difficult parts have a stronger sorting advantage.
Sorting systems are crucial in industries where large volumes of items need to be processed quickly and accurately, such as in logistics, e-commerce, manufacturing, and warehousing.
Keefam can provide you with customized solutions and the best project services according to the actual situation of the project.

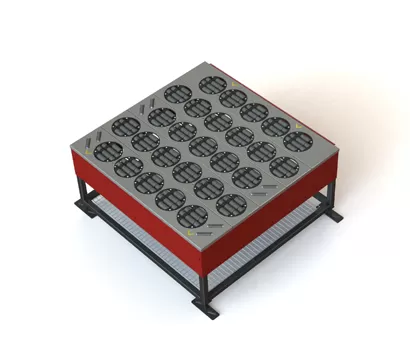

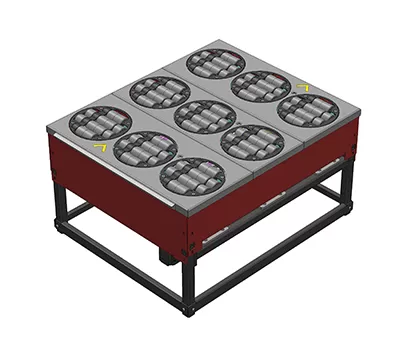

Intelligent Sorting Robot
Medium Speed Multi-wheel Sorter
Intelligent sorting robot is a multi-wheel type sorting device, for heavy parts...
Intelligent sorting robot is a multi-wheel type sorting device, for heavy parts...

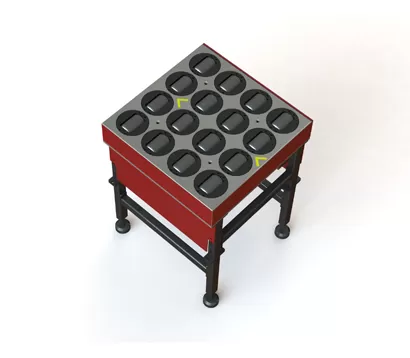

Super High Speed Multi-wheel Sorter
Intelligent sorting robot is a multi-wheel type sorting device, for heavy parts...

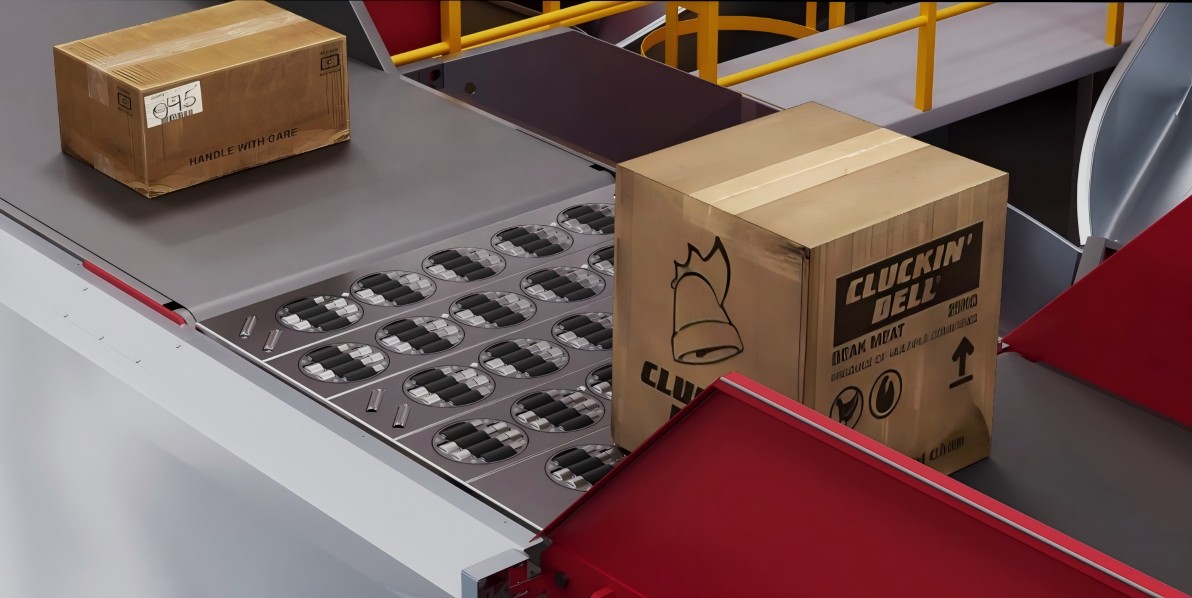

Intelligent sorting robot is a multi-wheel type sorting device, for heavy parts, woven bags, flexible packaging, uneven parts, cartons and other categories of package type sorting applications, modular design and assembly can be applied to large, medium and small different application sites, according to the actual situation of the project, to provide you with exclusive customized solutions and the best project services. Sorting systems are crucial in industries where large volumes of items need to be processed quickly and accurately, such as in logistics, e-commerce, manufacturing, and warehousing.
Intelligent Sorting Machine Features
1. High sorting success rate
99.99%
2. Energy saving and power saving
0.2 kWh of electricity per hour, saving 60% energy consumption compared with the same type of models
3. High load-bearing capacity
Standard load-bearing capacity is 60KG/㎡, no pressure on heavy goods supply
4. High sorting efficiency
3000-10000 pieces/hour, flexible selection according to production capacity requirements
5. Full specification sorting
200mm-1200mm
6. Long service life
≥10 years
7. Modular design
Plug and play, quick replacement in 10 minutes
8. Supports sorting types
Cartons, soft bags, woven bags, pallets, books, parcels, letters, turnover baskets, electronic products, special-shaped parts, etc.
Balance Wheel Sorting Machine Technical Parameters
| Modular Intelligent Sorting Equipment Product Parameters | |||||||||
| Model | Capacity | Goods category | Load | operational Speed | operational Noise | Specification(mm) | Line Width(mm) | Cargo size mm | Cargo Interval（mm） |
| (pieces/hour) | (kg) | ||||||||
| Intelligent sorting robot of medium speed | 800-4000 | All categories | 0.15-60 | 0.8m-1.5/s | ≤72dB | 700x860x700 | 800 | 160*100-600*600 | 450 |
| 920x1060x700 | 1000 | 160*100-1000*800 | 450 | ||||||
| 1200x1260x700 | 1200 | 160*100-1200*800 | 450 | ||||||
| Intelligent sorting robot of high speed | 4000-6000 | All categories | 0.15-60 | 0.8m-2.2/s | ≤72dB | 700x860x700 | 800 | 160*100-600*600 | 450 |
| 920x1060x700 | 1000 | 160*100-1000*800 | 450 | ||||||
| 1200x1260x700 | 1200 | 160*100-1200*800 | 450 | ||||||
| Intelligent sorting robot of ultra high-speed | 7000 | Standard container goods | 0.2-35 | 150m/min | ≤72dB | 760x760x600 | 800 | 200*200-800*600 | 660 |
| 8000 | 150m/min | 520x520x600 | 600 | 200*200-600*400 | 540 | ||||
| 760x760x600 | 800 | 200*200-800*600 | 540 | ||||||
| 10000 | 180m/min | 520x520x600 | 600 | 200*200-600*400 | 480 | ||||
| 760x760x600 | 800 | 200*200-800*600 | 480 | ||||||
Whole Process Quality Inspection
The company has ISO9001 international quality system certification, strict testing process, from raw material warehousing, production process control to finished products out of the warehouse, each link is strictly quality control, to ensure that product quality meets national standards and customer requirements; Professional inspection team, team members have rich industry experience and professional skills, can accurately judge product quality problems, and put forward improvement measures in time; The company pays attention to the construction and improvement of quality management system, through continuous improvement and innovation, improve product quality level and production efficiency, to meet the increasing needs of customers.
